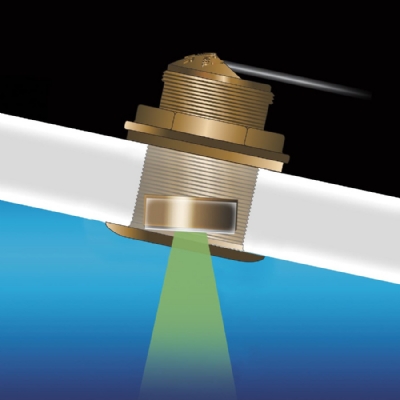

TRANSDUCER - MODEL: B75M

Features

• Depth and fast-response water-temperature sensor
• 600 W with a maximum depth performance to 274 m (900')
• Medium frequency: 80 to 130 kHz>
  • 24° to 16° beamwidth
• Medium frequency provides good shallow-water performance, bottom detail, and deeper performance than high-frequency band
• Low-profile, thru-hull housing delivers good resolution at speed when installed properly
• Bronze housing for use on stepped, planing or displacement hull
• Exclusive Xducer ID® technology

Specifications

• Weight: 1.4 kg (3 lb.)
• Recommended Boat Length: Up to 8 m (25')
• Hull Material: Fiberglass or wood
• Hull Deadrise: Up to 24°
• Acoustic Window: Urethane
• Hole Diameter: 70 mm (2-13/16")
• Transducer Element: One internal broadband ceramic assembly
